LV1035M, Dolby ProLogic Decoder

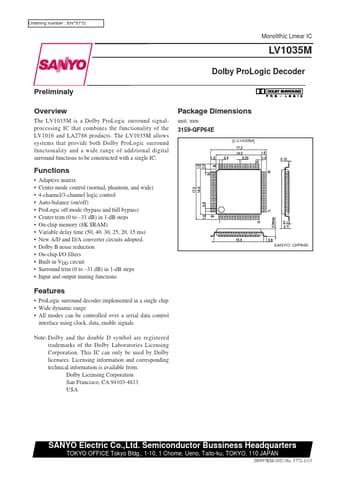

Ordering number : EN 5772 Monolithic Linear IC LV1035M Dolby ProLogic Decoder Preliminaly Overview The LV1035M is a Dolby ProLogic surround signalprocessing IC that combines the functionality of the LV1016 and LA2786 products.

The LV1035M allows systems that provide both Dolby ProLogic surround functionality and a wide range of additional digital surround functions to be constructed with a single IC.

Package Dimensions unit: mm 3159-QFP64E [LV1035M] Functions

LV1035M Features

* ProLogic surround decoder implemented in a single chip

* Wide dynamic range

* All modes can be controlled over a serial data control interface using clock, data, enable signals. Note: Dolby and the double D symbol are registered trademarks of the Dolby Laboratories Licensin
