LV1041M Datasheet - Sanyo Semicon Device

LV1041M - Dolby Prologic Decoder

Ordering number : EN5889 Monolithic Linear IC LV1041M Dolby Prologic Decoder Overview The LV1041M is a Dolby Prologic Surround signalprocessing IC that implements in a single chip the functions of the Sanyo LV1016 and LA2786 ICs and a master volume control for the center and surround channels.

This IC allows both systems of Dolby Prologic surround and digital surround to be formed into a single IC.

Note : Dolby and the double D symbol are registered trademarks of the Dolby Laboratories

LV1041M Features

* Implements a Prologic surround decoder in a single chip.

* Wide dynamic range

* All modes can be controlled from control data transmitted serially over four lines: CLOCK, DATA, ENABLE, and ENABLE2. This function is compatible with the LV1016 and the LA2786. Package Dimensi

LV1041M_SanyoSemiconDevice.pdf

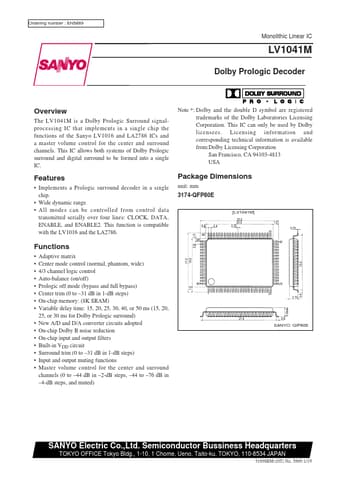

Preview of LV1041M PDF
LV1041M Datasheet Preview Page 2 LV1041M Datasheet Preview Page 3

Datasheet Details

Part number:

LV1041M

Manufacturer:

Sanyo Semicon Device

File Size:

91.88 KB

Description:

Dolby prologic decoder.
