LV2283VB Datasheet - Sanyo Semicon Device

LV2283VB FM Transmitter IC

Pin No. 1 Pin Name L-INPUT DC Voltage (V) 0 Description Left channel input. If audio source DC voltage is not 0V, AC coupling capacitance is required. Pre-emphasis capacitance should be required between pin 1 (24) and 2 (23). Equivalent Circuit 6 4 1 24 50kΩ 1kΩ 10kΩ 2 23 5 2 3 4 L-CAP GND MPX+.

LV2283VB Features

* (Audio)

* (RF)

* (PLL)

* (Bus control)

* (Regulator) Pilot tone system stereo modulation, audio attenuation VCO, programmable gain driver amplifier 70 to 110MHz 100kHz step I2C bus control 2.8V LDO regulator Specifications Absolute Maximum Ratings at Ta = 2

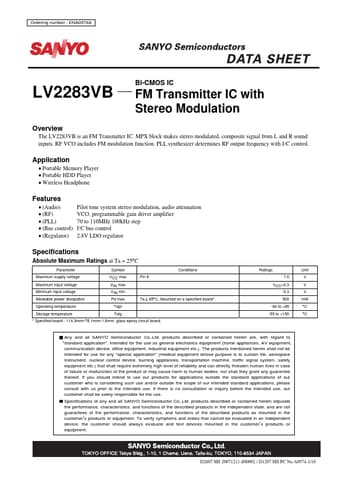

LV2283VB Datasheet (182.64 KB)

Preview of LV2283VB PDF

Datasheet Details

Part number:

LV2283VB

Manufacturer:

Sanyo Semicon Device

File Size:

182.64 KB

Description:

Fm transmitter ic.
