LV5232VH

16ch LED Driver

Sanyo Semicon Device

LV5232VH Features

* a CMOS structure based on Bi-CMOS process technology. The LV5232VH also contains an n-channel CMOS construction high-withstand-voltage, large-current drive 16-stage parallel output driver. The protection circuit of the output malfunction is built into. Features

* Serial input and serial or

LV5232VH General Description

Pin No. 1 2 3 4 5 6 7 Heat sink 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Heat sink 22 23 24 25 26 27 LEDO12 LEDO11 PGND3 PGND10 PGND9 LATCH O O I O O LEDO12 Latch output (LEDO12 of shift register) LEDO11 Latch output (LEDO11 of shift register) GND LEDO10 Latch output (LEDO10 of shift register) LEDO9.

LV5232VH Datasheet (236.60 KB)

LV5232VH Datasheet Preview — Preview of LV5232VH PDF

Datasheet Details

Part number:

LV5232VH

Manufacturer:

Sanyo Semicon Device

File Size:

236.60 KB

Description:

16ch led driver.

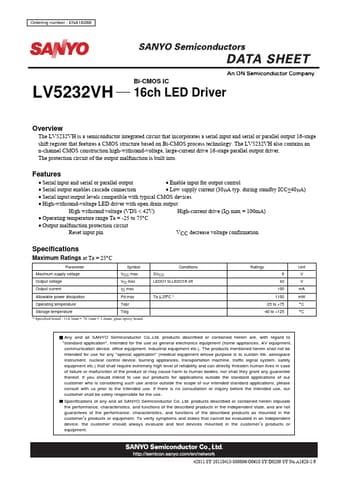

www.DataSheet.co.kr Ordering number : ENA1628B Bi-CMOS IC LV5232VH Overview 16ch LED Driver The LV5232VH is a semiconductor integrated circuit th.
