LV56081GP Charge Pump Power Supply

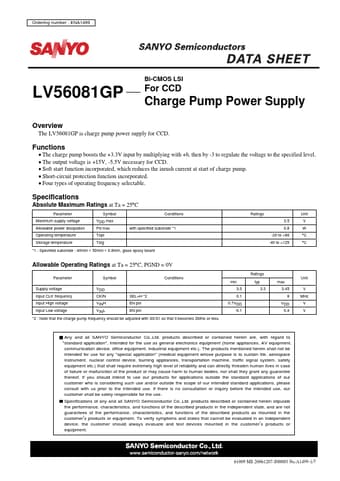

www.DataSheet.co.kr Ordering number : ENA1499 Bi-CMOS LSI LV56081GP Overview For CCD Charge Pump Power Supply The LV56081GP is charge pump power supply for CCD. Functions The charge pump boosts the +3.3V input by multiplying with +6, then by -3 to regulate the voltage to the specified level. The output voltage is +15V, -5.5V necessary for CCD. Soft start function incorporated, which reduces the inrush current at start of charge pump. Short-circuit .

LV56081GP Features

* o keep the EN pin at L till VDD becomes 3V or more. Note that oper

LV56081GP Datasheet (158.42 KB)

Preview of LV56081GP PDF
LV56081GP Datasheet Preview Page 2 LV56081GP Datasheet Preview Page 3

Datasheet Details

Part number:

LV56081GP

Manufacturer:

Sanyo Semicon Device

File Size:

158.42 KB

Description:

Charge pump power supply.
