LV5681P - Multi-Power Supply

ON Semiconductor

📥 Download Datasheet

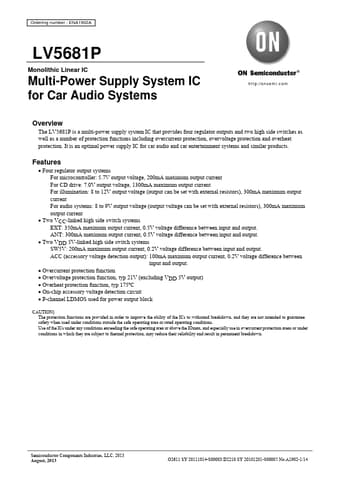

LV5681P Datasheet Preview — Preview of LV5681P PDF

Datasheet Details

Part number	LV5681P
Manufacturer	ON Semiconductor
File Size	203.76 KB
Description	Multi-Power Supply
Datasheet	LV5681P-ONSemiconductor.pdf

LV5681P Product details

Description

ILM output pin ON when CTRL1 = M1, M2, H 8.0 to12.0V/300mA 2 ILM_F ILM output voltage adjustment pin Equivalent Circuit 7 VCC 1 2 9 GND Continued on next page.No.A1902-5/14 Continued from preceding page.Pin No.Pin name Description 3 CD CD output pin ON when CTRL2 = M, H 7.0V/1.3A LV5681P 7 3 Equivalent Circuit VCC 4 AUDIO_F AUIDO output voltage adjustment pin 5 AUDIO

Features

Four regulator output systems For microcontroller: 5.7V output voltage, 200mA maximum output current For CD drive: 7.0V output voltage, 1300mA maximum output current For illumination: 8 to 12V output voltage (output can be set with external resistors), 300mA maximum output current For audio systems: 8 to 9V output voltage (output voltage can be set with external resistors), 300mA maximum output current.
Two VCC-linked high side switch systems EXT: 350mA maximum output current,.
