SB02W03S

30V / 200mA Rectifier

SB02W03S Features

* Low forward voltage (VF max=0.55V).

* Fast reverse recovery time (trr max=10ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure. Package Dimensions unit:mm 1129A [SB02W03S] Specifications Absolute Maximum Ratings at Ta =

SB02W03S Datasheet (42.80 KB)

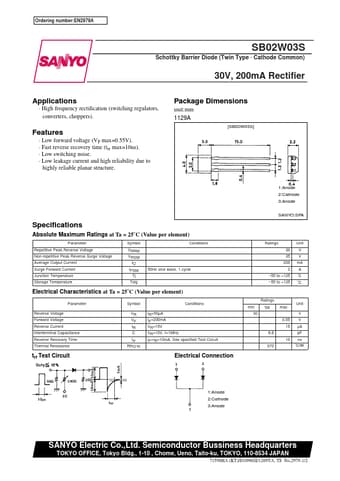

Preview of SB02W03S PDF

Datasheet Details

Part number:

SB02W03S

Manufacturer:

Sanyo Semicon Device

File Size:

42.80 KB

Description:

30v / 200ma rectifier.
Ordering number:EN2979A SB02W03S Schottky Barrier Diode (Twin Type
* Cathode Common) 30V, 200mA Rectifier Applications
* High frequency rect.
