SB05-09 Datasheet, Rectifier, Sanyo Semicon Device

SB05-09 Features

• Rectifier
• Low forward voltage (VF max=0.7V).
• Fast reverse recorvery time (trr max=10ns).
• Low switching noise.
• Low leakage current and high reliability due

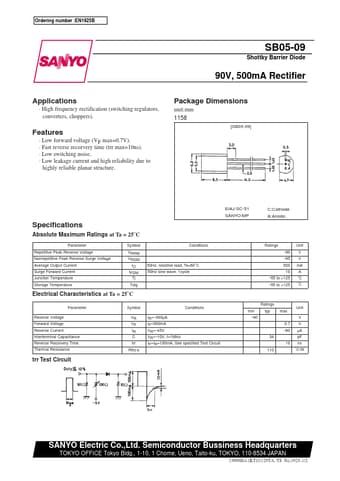

PDF File Details

Part number:

SB05-09

Manufacturer:

Sanyo Semicon Device

File Size:

58.40kb

Download:

📄 Datasheet

Description:

90v/ 500ma rectifier.

SB05-09 Application

• Applications
• High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1158 [SB05-09] Featur
