SB05W05 Datasheet - Sanyo Semicon Device

SB05W05, 50V / 500mA Rectifier

Ordering number : EN3611B SB05W05C SANYO Semiconductors DATA SHEET SB05W05C Schottky Barrier Diode (Twin Type * Cathode Common) 50V, 500mA Rec.

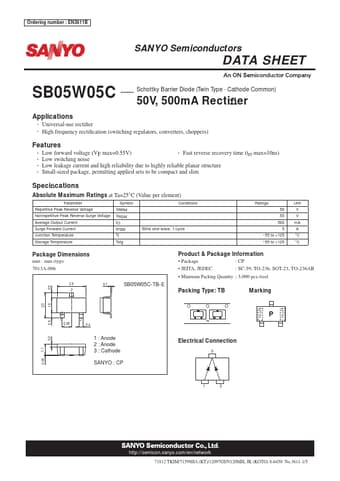

datasheet Preview Page 1 from Datasheet4u.com

SB05W05_SanyoSemiconDevice.pdf

SB05W05 Datasheet Preview — Preview of SB05W05 PDF

Datasheet Details

Part number:

SB05W05

Manufacturer:

Sanyo Semicon Device

File Size:

230.55 KB

Description:

50V / 500mA Rectifier

Features

* Low forward voltage (VF max=0.55V)
* Fast reverse recovery time (trr max=10ns)
* Low switching noise
* Low leakage current and high reliability due to highly reliable planar structure
* Small-sized package, permitting applied sets to be compact and slim

Applications

* Universal-use rectiﬁer
