SB200-05R

50V/ 20A Rectifier

SB200-05R Features

* Low forward voltage (VF max=0.55V).

* Fast reverse recovery time (trr max=85ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure.

* Micaless package facilitating easy mounting. A:Anode C:Cathode A:Anode SANYO:TO-3PML Sp

SB200-05R Datasheet (81.19 KB)

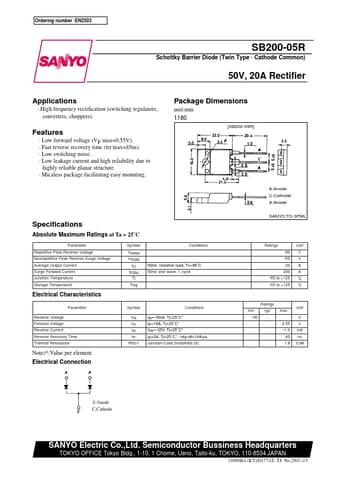

Preview of SB200-05R PDF

Datasheet Details

Part number:

SB200-05R

Manufacturer:

Sanyo Semicon Device

File Size:

81.19 KB

Description:

50v/ 20a rectifier.
Ordering number :EN2503 SB200-05R Schottky Barrier Diode (Twin Type
* Cathode Common) 50V, 20A Rectifier Applications
* High frequency recti.
