SB200-09 - 90V/ 20A Rectifier

Product Overview

Sanyo Semicon Device

Part number	SB200-09
Manufacturer	Sanyo Semicon Device
File Size	78.48 KB
Description	90V/ 20A Rectifier
Datasheet	SB200-09 Datasheet

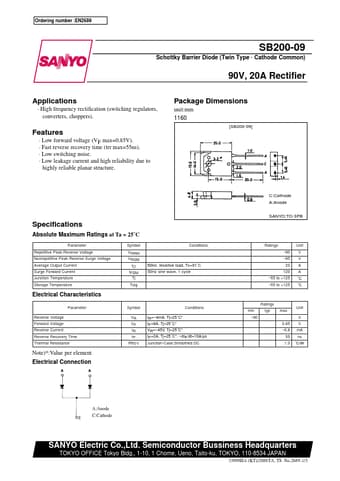

Additional preview pages of the SB200-09 datasheet.

Low forward voltage (VF max=0.85V).
Fast reverse recovery time (trr max=55ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. C:Cathode A:Anode SANYO:TO-3PB Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM Tj Tstg Condit.
