SB20W03V - 30V/ 2A Rectifier

Product Overview

Sanyo Semicon Device

Part number	SB20W03V
Manufacturer	Sanyo Semicon Device
File Size	72.96 KB
Description	30V/ 2A Rectifier
Datasheet	SB20W03V Datasheet

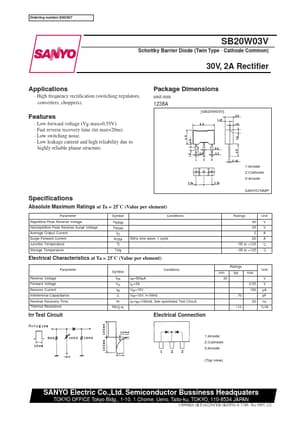

Additional preview pages of the SB20W03V datasheet.

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=20ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. 1:Anode 2:Cathode 3:Anode SANYO:NMP Specifications Absolute Maximum Ratings at Ta = 25˚C (Value per element) Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VR.
