SB20W05V 50V/ 2A Rectifier

SB20W05V Description

Ordering number:EN4173 SB20W05V Schottky Barrier Diode (Twin Type * Cathode Common) 50V, 2A Rectifier Applications * High frequency rectific.

SB20W05V Features

* Low forward voltage (VF max=0.55V).
* Fast reverse recovery time (trr max=20ns).
* Low switching noise.
* Low leakage current and high reliability due to highly reliable planar structure. 1:Anode 2:Cathode 3:Anode SANYO:NMP Specifications Absolute Maximum Ratings at Ta = 25˚C (Va

📥 Download Datasheet

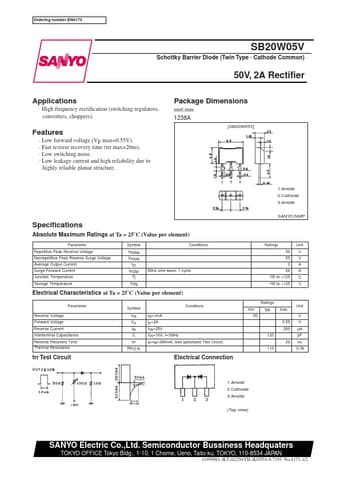

Preview of SB20W05V PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB20W05V
Manufacturer
Sanyo Semicon Device
File Size
70.08 KB
Datasheet
SB20W05V_SanyoSemiconDevice.pdf
Description
50V/ 2A Rectifier
