SB60-05J

50V/ 6A Rectifier

SB60-05J Features

* Low forward voltage (VF max=0.55V).

* Fast reverse recovery time (trr max=50ns).

* Low switching noise.

* Low leakage current and high reliability due to highly reliable planar structure.

* Micaless package facilitaing easy mounting. A:Anode C:Cathode AAnode SANYO:TO-220ML Spe

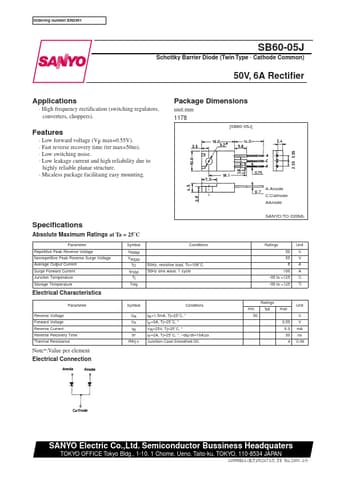

SB60-05J Datasheet (72.42 KB)

Preview of SB60-05J PDF

Datasheet Details

Part number:

SB60-05J

Manufacturer:

Sanyo Semicon Device

File Size:

72.42 KB

Description:

50v/ 6a rectifier.
Ordering number:EN2491 SB60-05J Schottky Barrier Diode (Twin Type
* Cathode Common) 50V, 6A Rectifier Applications
* High frequency rectific.
