SB60-05K Datasheet, Rectifier, Sanyo Semicon Device

SB60-05K Features

  • Rectifier
  • Low forward voltage (VF max=0.55V).
  • Fast reverse recovery time (trr=50ns max).
  • Low switching noise.
  • Low leakage current and high reliability due

PDF File Details

Part number:

SB60-05K

Manufacturer:

Sanyo Semicon Device

File Size:

73.73kb

Download:

📄 Datasheet

Description:

50v/ 6a rectifier.

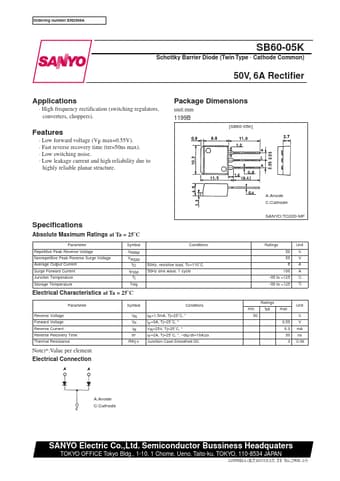

Datasheet Preview: SB60-05K 📥 Download PDF (73.73kb)
Page 2 of SB60-05K Page 3 of SB60-05K

SB60-05K Application

  • Applications
  • High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1199B [SB60-05K] Feat
