STK4181V - AF Power Amplifier

Sanyo Semicon Device

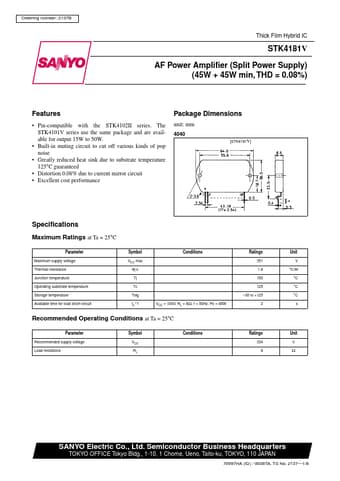

STK4181V Datasheet Preview — Preview of STK4181V PDF

Datasheet Details

Part number	STK4181V
Manufacturer	Sanyo Semicon Device
File Size	248.43 KB
Description	AF Power Amplifier
Datasheet	STK4181V_SanyoSemiconDevice.pdf

STK4181V Product details

Description

of External Parts No.2137 5/8 STK4181V C3, C4 Input ﬁlter capacitors A ﬁlter formed with R5 or R6 can be used to reduce noise at high frequencies. Used to block DC current. To reduce the pop noise at the time of application of power,

Features

Pin-compatible with the STK4102II series. The STK4101V series use the same package and are available for output 15W to 50W.
Built-in muting circuit to cut off various kinds of pop noise.
Greatly reduced heat sink due to substrate temperature 125°C guaranteed.
Distortion 0.08% due to current mirror circuit.
Excellent cost performance Package Dimensions unit: mm 4040 [STK4181V] Speciﬁcations Maximum Ratings at Ta = 25°C Parameter Maximum supply volt.
