STK412-000 - AF Power Amplifier

Product Overview

Sanyo Semiconductor

Part number	STK412-000
Manufacturer	Sanyo Semiconductor
File Size	61.94 KB
Description	AF Power Amplifier
Datasheet	STK412-000 Datasheet

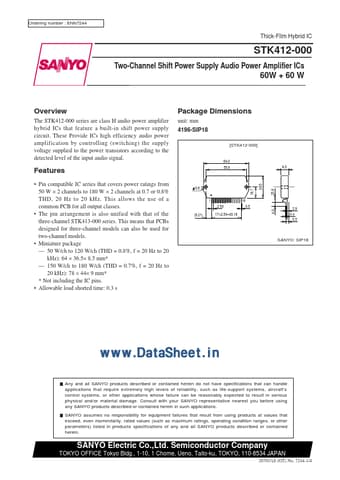

Additional preview pages of the STK412-000 datasheet.

Pin compatible IC series that covers power ratings from 50 W × 2 channels to 180 W × 2 channels at 0.7 or 0.8% THD, 20 Hz to 20 kHz. This allows the use of a common PCB for all output classes.
The pin arrangement is also unified with that of the three-channel STK413-000 series. This means that PCBs designed for three-channel models can also be used for two-channel models.
Miniature package.
50 W/ch to 120 W/ch (THD = 0.8%, f = 20 Hz to 20 kHz): 64 × 36.5× 8.
