STK412-150C-E - Two-Channel Power Switching System Audio Power-IC

Datasheet Summary

Features

  • a built-in power supply switching circuit. This IC provides high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power devices according to the detected level of the input audio signal.

📥 Download Datasheet

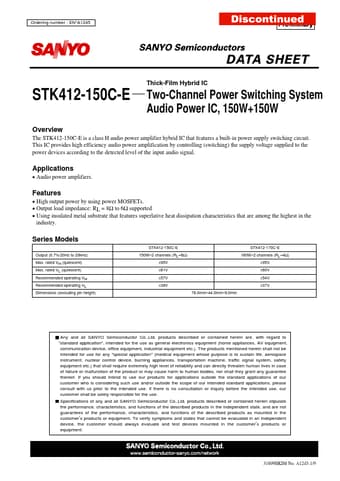

Datasheet preview – STK412-150C-E

Datasheet Details

Part number STK412-150C-E
Manufacturer Sanyo
File Size 188.36 KB
Description Two-Channel Power Switching System Audio Power-IC
Datasheet download datasheet STK412-150C-E Datasheet
Additional preview pages of the STK412-150C-E datasheet.

📁 Similar Datasheet

  • STK412-170 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-000 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-020 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-030 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-040 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-090 - AF Power Amplifier (Sanyo Semiconductor)
  • STK4120MK2 - STK4120MK2 Series (Sanyo Semicon Device)
  • STK4120MK5 - (STK4100MK5 Series) STK Audio Power Amplifier (Sanyo Semicon Device)
  • STK4121 - 2-CHANNEL AF POWER AMP (ETC)
  • STK4121II - (STK4101 II Series) 2-CHANNEL AF POWER AMP (ETC)
Other Datasheets by Sanyo

Full PDF Text Transcription

Click to expand full text
Ordering number : EN*A1245 Thick-Film Hybrid IC STK412-150C-E Overview Two-Channel Power Switching System Audio Power IC, 150W+150W The STK412-150C-E is a class H audio power amplifier hybrid IC that features a built-in power supply switching circuit. This IC provides high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power devices according to the detected level of the input audio signal. Applications • Audio power amplifiers. Features • High output power by using power MOSFETs. • Output load impedance: RL = 8Ω to 6Ω supported • Using insulated metal substrate that features superlative heat dissipation characteristics that are among the highest in the industry. Series Models STK412-150C-E Output (0.7%/20Hz to 20kHz) Max.
