STK412-150 - Audio Power Amplifier

Datasheet Summary

Features

  • Pin compatible IC series that covers power ratings from 50 W × 2 channels to 180 W × 2 channels at 0.7 or 0.8% THD, 20 Hz to 20 kHz. This allows the use of a common PCB for all output classes.
  • The pin arrangement is also unified with that of the three-channel STK413-000 series. This means that PCBs designed for three-channel models can also be used for two-channel models.
  • Miniature package.
  • 50 W/ch to 120 W/ch (THD = 0.8%, f = 20 Hz to 20 kHz): 64 × 36.5× 8.

📥 Download Datasheet

Datasheet preview – STK412-150

Datasheet Details

Part number STK412-150
Manufacturer Sanyo
File Size 92.23 KB
Description Audio Power Amplifier
Datasheet download datasheet STK412-150 Datasheet
Additional preview pages of the STK412-150 datasheet.

📁 Similar Datasheet

  • STK412-170 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-000 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-020 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-030 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-040 - AF Power Amplifier (Sanyo Semiconductor)
  • STK412-090 - AF Power Amplifier (Sanyo Semiconductor)
  • STK4120MK2 - STK4120MK2 Series (Sanyo Semicon Device)
  • STK4120MK5 - (STK4100MK5 Series) STK Audio Power Amplifier (Sanyo Semicon Device)
  • STK4121 - 2-CHANNEL AF POWER AMP (ETC)
  • STK4121II - (STK4101 II Series) 2-CHANNEL AF POWER AMP (ETC)
Other Datasheets by Sanyo

Full PDF Text Transcription

Click to expand full text

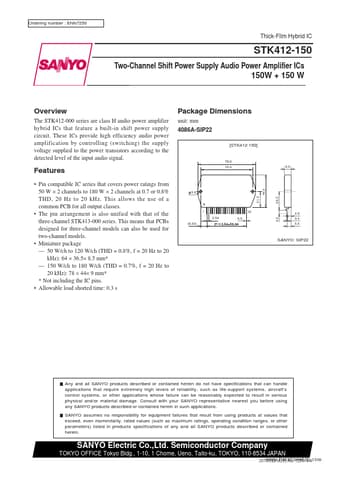

www.DataSheet4U.com Ordering number : ENN7250 Thick-Film Hybrid IC STK412-150 Two-Channel Shift Power Supply Audio Power Amplifier ICs 150W + 150 W Overview The STK412-000 series are class H audio power amplifier hybrid ICs that feature a built-in shift power supply circuit. These ICs provide high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power transistors according to the detected level of the input audio signal. Package Dimensions unit: mm 4086A-SIP22 [STK412-150] 78.0 70.0 9.0 Features • Pin compatible IC series that covers power ratings from 50 W × 2 channels to 180 W × 2 channels at 0.7 or 0.8% THD, 20 Hz to 20 kHz. This allows the use of a common PCB for all output classes.
