STK433-730-E

2-channel class AB audio power IC 30W+30W

STK433-730-E Features

* Miniature package (47.0mm × 25.6mm × 9.0mm)

* Output load impedance: RL = 6Ω to 4Ω supported

* Built-in stand-by circuit, output limiting circuit for substrate overheating, and load short-circuit protection circuit constituted by monolithic ICs Series Models STK433-730-E

STK433-730-E General Description

Ripple filtering resistors (Fusible resistors are desirable) (Used with C03 to form a ripple filter.) R03 R11, 12 R13, 14 R15, 16 R21, 22 R23, 24 R25, 26 R27, 28 C01, 02 4.7Ω 4.7Ω/1W 56kΩ 1kΩ 1.8kΩ 56kΩ 3kΩ 100μF Larger than Recommended Value Decreased passthrough current at high frequencies. rating.

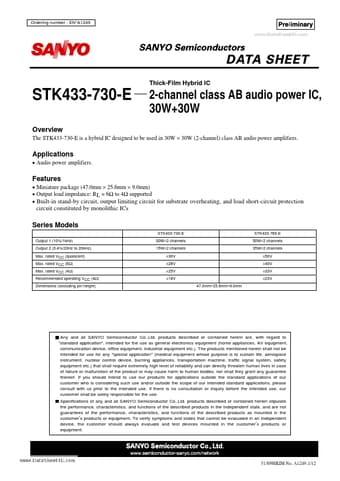

STK433-730-E Datasheet (201.20 KB)

Preview of STK433-730-E PDF

Datasheet Details

Part number:

STK433-730-E

Manufacturer:

Sanyo Semicon Device

File Size:

201.20 KB

Description:

2-channel class ab audio power ic 30w+30w.
Ordering number : EN
*A1249 www.DataSheet4U.com Thick-Film Hybrid IC STK433-730-E Overview 2-channel class AB audio power IC, 30W+30W The STK4.
