STK433-760-E - 2-channel class AB audio power IC 50W+50W

Sanyo Semicon Device

📥 Download Datasheet

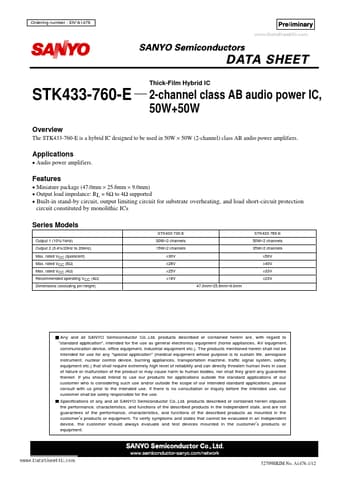

STK433-760-E Datasheet Preview — Preview of STK433-760-E PDF

Datasheet Details

Part number	STK433-760-E
Manufacturer	Sanyo Semicon Device
File Size	229.20 KB
Description	2-channel class AB audio power IC 50W+50W
Datasheet	STK433-760-E_SanyoSemiconDevice.pdf

STK433-760-E Product details

Description

Ripple filtering resistors (Fusible resistors are desirable) (Used with C03, C04 to form a ripple filter.) R03 (R04) R11, 12 R13, 14 R15, 16 R21, 22 R23, 24 R25, 26 R27, 28 C01, 02 about 10kΩ 4.7Ω 4.7Ω/1W 56kΩ 1kΩ 1.8kΩ 56kΩ 560Ω 100μF Larger than Recommended Value Decreased passthrough current at high frequencies.

Features

Miniature package (47.0mm × 25.6mm × 9.0mm).
Output load impedance: RL = 6Ω to 4Ω supported.
Built-in stand-by circuit, output limiting circuit for substrate overheating, and load short-circuit protection circuit constituted by monolithic ICs Series Models STK433-730-E Output 1 (10%/1kHz) Output 2 (0.4%/20Hz to 20kHz) Max. rated VCC (quiescent) Max. rated VCC (6Ω) Max. rated VCC (4Ω) Recommended operating VCC (4Ω) Dimensions (excluding pin height) 30W×2 channels 15W.
