STK681-332-E - Forward/Reverse Motor Driver

Sanyo Semicon Device

Datasheet Details

Part number	STK681-332-E
Manufacturer	Sanyo Semicon Device
File Size	245.98 KB
Description	Forward/Reverse Motor Driver

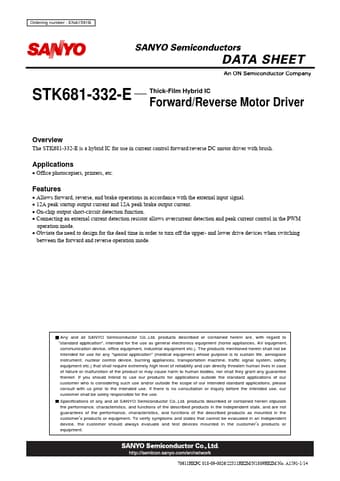

Datasheet	STK681-332-E_SanyoSemiconDevice.pdf

Allows forward, reverse, and brake operations in accordance with the external input signal.
12A peak startup output current and 12A peak brake output current.
On-chip output short-circuit detection function.
Connecting an external current detection resistor allows overcurrent detection and peak current control in the PWM operation mode.
Obviate the need to design for the dead time in order to turn off the upper- and lower drive devices when switc.
