VP301 Datasheet - Sanyo Semicon Device

VP301, Ultrahigh Resolution CRT Display Video Output Amplifier

Ordering number : EN5429A Wideband Output Module (Video Pack) VP301 Ultrahigh Resolution CRT Display Video Output Amplifier .

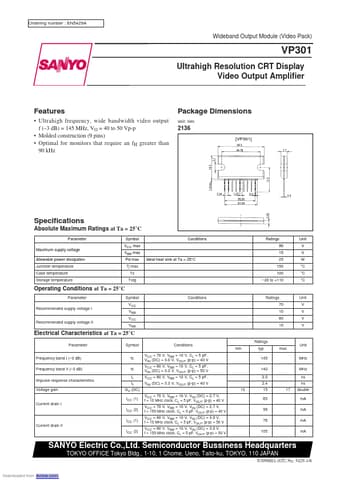

datasheet Preview Page 1 from Datasheet4u.com

VP301_SanyoSemiconDevice.pdf

VP301 Datasheet Preview — Preview of VP301 PDF

Datasheet Details

Part number:

VP301

Manufacturer:

Sanyo Semicon Device

File Size:

99.02 KB

Description:

Ultrahigh Resolution CRT Display Video Output Amplifier

Features

* Ultrahigh frequency, wide bandwidth video output f (
* 3 dB) = 145 MHz, VO = 40 to 50 Vp-p
* Molded construction (9 pins)
* Optimal for monitors that require an fH greater than 90 kHz Package Dimensions unit: mm 2136 [VP301] Specifications Absolute Maximum Ratings a
