VP3-0055-R, VP3-0780-R - Inductors and Transformers

VP3-0055-R Description

Technical Data 4301 Effective August 2017 Supersedes March 2007 VP VERSA-PAC® Inductors and Transformers (Surface Mount) Product .

VP3-0055-R Features

* Six winding, surface mount devices that offer more than 500 usable inductor or transformer configurations
* High power density and low profile
* Low radiated noise and tightly coupled windings
* Power range from 1 Watt
* 70 Watts
* Frequency range to

VP3-0055-R Applications

* Inductors: buck, boost, coupled, choke, filter, resonant, noise filtering, differential, forward, common mode
* Transformers: flyback, feed forward, pushpull, multiple output, inverter, step-up, stepdown, gate drive, base drive, wide band, pulse, control, impedance, isolation, brid

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VP3-0055-R, VP3-0780-R. Please refer to the document for exact specifications by model.

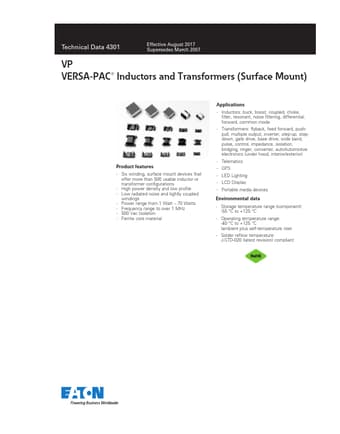

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VP3-0055-R, VP3-0780-R
Manufacturer
EATON
File Size
1.26 MB
Datasheet
VP3-0780-R-EATON.pdf
Description
Inductors and Transformers
Note
This datasheet PDF includes multiple part numbers: VP3-0055-R, VP3-0780-R.
Please refer to the document for exact specifications by model.
