VP3203 - P-Channel Vertical DMOS FETs

VP3203 Description

Supertex inc.VP3203 P-Channel Enhancement-Mode Vertical DMOS FET .
Free from secondary breakdown. Low power drive requirement. Ease of paralleling. Low CISS and fast switching spe.

VP3203 Applications

* This low threshold, enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex’s well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive

📥 Download Datasheet

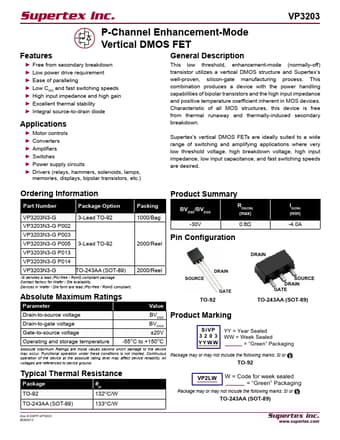

Preview of VP3203 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VP3203
Manufacturer
Supertex Inc
File Size
701.11 KB
Datasheet
VP3203_SupertexInc.pdf
Description
P-Channel Vertical DMOS FETs
