C3921 - 2SC3921

Features

  • On-chip bias resistance : R1=4.7kΩ, R2=4.7kΩ.
  • Large current capacity : IC=500mA. 0.45 0.5 0.6 2.0 5.0 0.45 0.44 1 2 3 14.0 ( ) : 2SA1527 1.3 1.3 1 : Emitter 2 : Collector 3 : Base SANYO : NP Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj.

📥 Download Datasheet

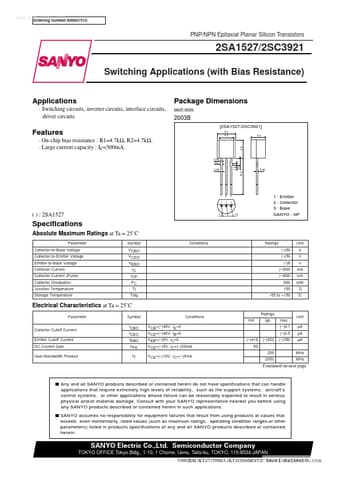

Datasheet preview – C3921

Datasheet Details

Part number C3921
Manufacturer Sanyo Semiconductor Corporation
File Size 59.52 KB
Description 2SC3921
Datasheet download datasheet C3921 Datasheet
