STK402-230 - Three-Channel Class AB Audio Power Amplifier

Datasheet Summary

Features

  • Series of pin compatible power amplifiers ranging from 20 W × 3 channels to 60 W × 3 channels (10%/1 kHz) devices. The same printed circuit board can be used depending on the output power grade.
  • The pin arrangement is compatible with that of the 2channel STK402-000 series. This means that 3-channel printed circuit boards can also be used for 2-channel products.
  • Miniature packages.
  • 15 W/ch to 40 W/ch (THD = 0.4%, f = 20 Hz to 20 kHz); 59.2 mm × 31.0 mm × 8.5.

📥 Download Datasheet

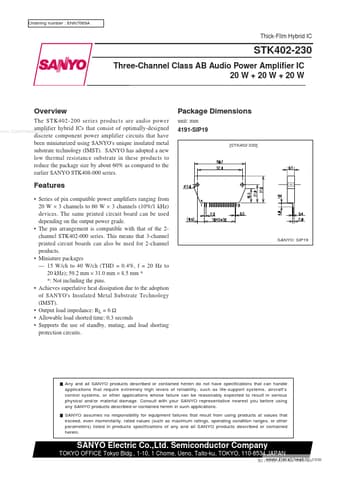

Datasheet preview – STK402-230

Datasheet Details

Part number STK402-230
Manufacturer Sanyo Semiconductor Corporation
File Size 161.61 KB
Description Three-Channel Class AB Audio Power Amplifier
Datasheet download datasheet STK402-230 Datasheet
Additional preview pages of the STK402-230 datasheet.

📁 Similar Datasheet

  • STK402-250 - Three-Channel Class AB Audio Power Amplifier (Sanyo Semicon Device)
  • STK402-270 - Three-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-020 - Two-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-030 - Two-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-040 - Two-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-050 - Two-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-070 - Two-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-071 - 2-Channel AF Power Amplifier (Sanyo)
  • STK402-090 - Two-Channel Class AB Audio Power Amplifier (Sanyo)
  • STK402-100 - 2-Channel Class AB Audio Power Amplifier (Sanyo Electric)
Other Datasheets by Sanyo Semiconductor Corporation

Full PDF Text Transcription

Click to expand full text
Ordering number : ENN7069A Thick-Film Hybrid IC STK402-230 Three-Channel Class AB Audio Power Amplifier IC 20 W + 20 W + 20 W Overview The STK402-200 series products are audio power amplifier hybrid ICs that consist of optimally-designed www.DataSheet4U.com discrete component power amplifier circuits that have been miniaturized using SANYO's unique insulated metal substrate technology (IMST). SANYO has adopted a new low thermal resistance substrate in these products to reduce the package size by about 60% as compared to the earlier SANYO STK408-000 series. Package Dimensions unit: mm 4191-SIP19 [STK402-230] Features • Series of pin compatible power amplifiers ranging from 20 W × 3 channels to 60 W × 3 channels (10%/1 kHz) devices.
