LA1844 - Single chip tuner IC

Product Overview

Sanyo Semiconductor

📥 Download Datasheet

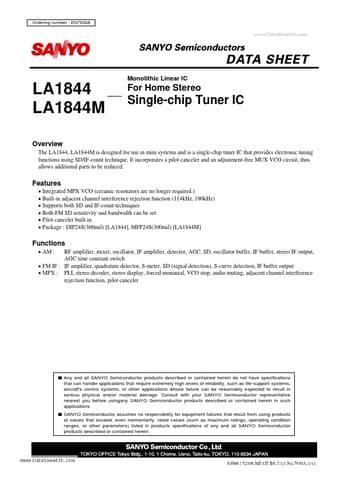

LA1844 Single chip tuner IC by Sanyo Semiconductor - Datasheet Preview — Datasheet preview – LA1844

Datasheet Details

Part number	LA1844
Manufacturer	Sanyo Semiconductor
File Size	844.91 KB
Description	Single chip tuner IC
Datasheet	LA1844 Datasheet
Additional preview pages of the LA1844 datasheet.

Product details

Features

Integrated MPX VCO (ceramic resonators are no longer required. ).
Built-in adjacent channel interference rejection function (114kHz, 190kHz).
Supports both SD and IF-count techniques.
Both FM SD sensitivity and bandwidth can be set.
Pilot canceler built in.
Package : DIP24S(300mil) [LA1844], MFP24S(300mil) [LA1844M] Functions.
AM : RF amplifier, mixer, oscillator, IF amplifier, detector, AGC, SD, oscillator buffer, IF buffer, stere.
