LA1836M Single-Chip Home Stereo Electronic Tuning IC

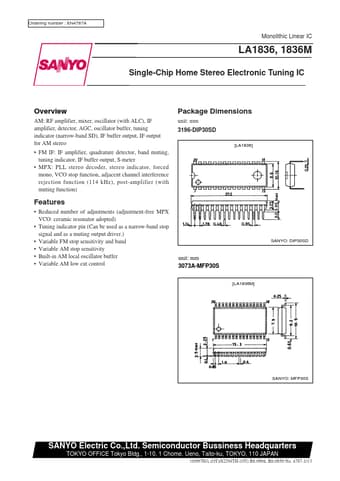

Ordering number : EN4787A Monolithic Linear IC LA1836, 1836M Single-Chip Home Stereo Electronic Tuning IC Overview AM: RF amplifier, mixer, oscillator (with ALC), IF amplifier, detector, AGC, oscillator buffer, tuning indicator (narrow-band SD), IF buffer output, IF output for AM stereo FM IF: IF amplifier, quadrature detector, band muting, tuning indicator, IF buffer output, S-meter MPX: PLL stereo decoder, stereo indicator, forced mono, VCO stop function, adjacent channel.

LA1836M Features

* Reduced number of adjustments (adjustment-free MPX VCO: ceramic resonator adopted)

* Tuning indicator pin (Can be used as a narrow-band stop signal and as a muting output driver.)

* Variable FM stop sensitivity and band

* Variable AM stop sensitivity

* Built

LA1836-Sanyo.pdf

LA1836M Datasheet Preview — This datasheet PDF includes multiple part numbers: LA1836M, LA1836. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LA1836M, LA1836

Manufacturer:

Sanyo

File Size:

530.93 KB

Description:

Single-chip home stereo electronic tuning ic.

Note:

This datasheet PDF includes multiple part numbers: LA1836M, LA1836.
Please refer to the document for exact specifications by model.
