LA100-TP Datasheet - LEM

LA100-TP Current Transducer

Current Transducer LA 100-TP For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IP N = 100 A Electrical data IP N Primary nominal RMS current 100 A IP M Primary current, measuring range 0 ±150 A RM Measuring resistance @ TA = 70 °C TA = 85 °C R R R R M min M max M min M max with ±12 V @ ±100 A max 0 50 0 42 Ω @ ±120 A max 0 22 0 14 Ω with ±15 V @ ±100 A max 0 110 .

LA100-TP Features

* Closed loop (compensated) current transducer using the Hall effect

* Insulating plastic case recognized according to UL 94-V0. Advantages

* Excellent accuracy

* Very good linearity

* Low temperature drift

* Optimized response time

* Wi

LA100-TP Datasheet (533.32 KB)

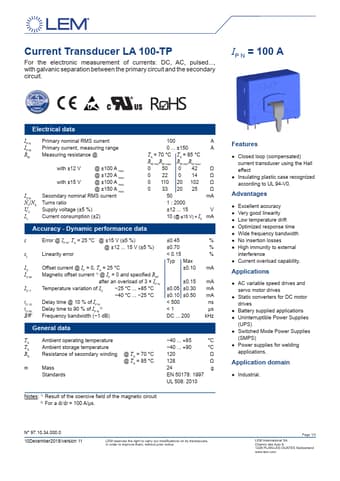

Preview of LA100-TP PDF
LA100-TP Datasheet Preview Page 2 LA100-TP Datasheet Preview Page 3

Datasheet Details

Part number:

LA100-TP

Manufacturer:

LEM

File Size:

533.32 KB

Description:

Current transducer.
