LA1137NM, LA1136N Datasheet - Sanyo

LA1137NM AM Tuners

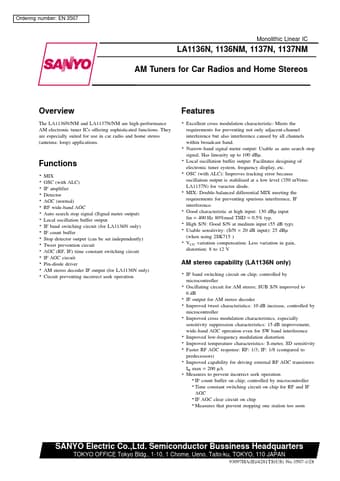

Ordering number: EN 3507 Monolithic Linear IC LA1136N, 1136NM, 1137N, 1137NM AM Tuners for Car Radios and Home Stereos Overview The LA1136N/NM and LA1137N/NM are high-performance AM electronic tuner ICs offering sophisticated functions. They are especially suited for use in car radio and home stereo (antenna: loop) applications. Functions . MIX . OSC (with ALC) . IF amplifier . Detector . AGC (normal) . RF wide-band AGC . Auto search stop signal (Signal meter output) . Local oscillation buffer.

LA1137NM Features

* . Excellent cross modulation characteristic: Meets the requirements for preventing not only adjacent-channel interference but also interference caused by all channels . within broadcast band. Narrow-band signal meter output: Usable as auto search stop . signal. Has linearity up to 100 dBµ. Local osc

LA1136N-Sanyo.pdf

This datasheet PDF includes multiple part numbers: LA1137NM, LA1136N. Please refer to the document for exact specifications by model.
LA1137NM Datasheet Preview Page 2 LA1137NM Datasheet Preview Page 3

Datasheet Details

Part number:

LA1137NM, LA1136N

Manufacturer:

Sanyo

File Size:

561.09 KB

Description:

Am tuners.

Note:

This datasheet PDF includes multiple part numbers: LA1137NM, LA1136N.
Please refer to the document for exact specifications by model.
