Ordering number: EN 3507 Monolithic Linear IC LA1136N, 1136NM, 1137N, 1137NM AM Tuners for Car Radios and Home Stereos Overview The LA1136N/NM and LA1137N/NM are high-performance AM electronic tuner ICs offering sophisticated functions.

They are especially suited for use in car radio and home stereo (antenna: loop) applications.

Functions .

MIX .

OSC (with ALC) .

IF amplifier .

Detector .

AGC (normal) .

RF wide-band AGC .

Auto search stop signal (Signal meter output) .

Local oscillation buffer

LA1136N Features

* . Excellent cross modulation characteristic: Meets the requirements for preventing not only adjacent-channel interference but also interference caused by all channels . within broadcast band. Narrow-band signal meter output: Usable as auto search stop . signal. Has linearity up to 100 dBµ. Local osc

LA1136N-Sanyo.pdf

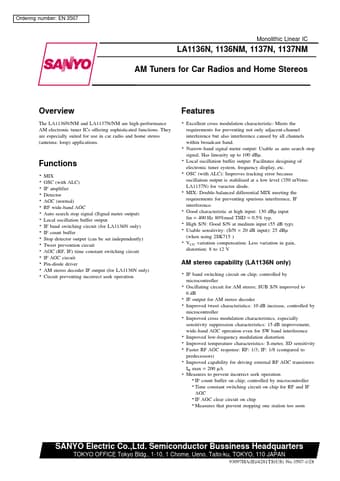

Preview of LA1136N PDF
