103H6501-7041 Datasheet - Sanyo

103H6501-7041 5-phase stepping motor

5-phase stepping motor (0.72) 5-phase stepping motor 50 103H650 mm sq. 0.72˚/step Applicable drivers PMM-MA 50034 PMM-MA 50064 PMM-BA 5603 5643 PMM-BA 5604 5644 PMDPB1S6P01 PMDPC1S3P01 PMM-MD-53030 PMM-MD-53031 PMM-BD-53130 PMM-BD-53131 PMDPA1C3P50 Specifications Model number Holding torque at 5-phase energization Rated current resistance inductance Single shaft Double shaft N.m(oz.in) MIN. A/phase Ω/phase mH/phase 103H6500-7041 -7011 0.235(33.28) 0.75 2 4 103H6500-8041 -80.

103H6501-7041 Datasheet (535.19 KB)

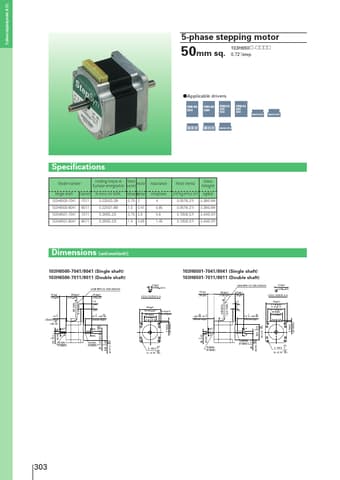

103H6501-7041 Datasheet Preview — Preview of 103H6501-7041 PDF

Datasheet Details

Part number:

103H6501-7041

Manufacturer:

Sanyo

File Size:

535.19 KB

Description:

5-phase stepping motor.
