A1415

2SA1415

A1415 Features

* Adoption of FBET process.

* High breakdown voltage (VCEO=160V).

* Excellent linearity of hFE and small Cob.

* Fast switching speed.

* Ultrasmall size marking it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit:mm 2038A [2SA1415/2SC3645] 4.5 1.6 1.

A1415 Datasheet (35.51 KB)

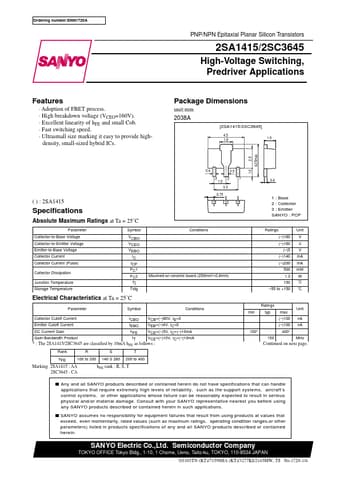

Preview of A1415 PDF

Datasheet Details

Part number:

A1415

Manufacturer:

Sanyo

File Size:

35.51 KB

Description:

2sa1415.
