A1402 - 2SA1402

A1402 Description

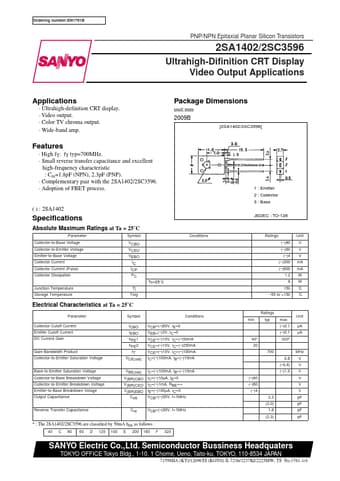

Ordering number:EN1761B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1402/2SC3596 Ultrahigh-Difinition CRT Display Video Output Applications Appl.

A1402 Features

* High fT: fT typ=700MHz.
* Small reverse transfer capacitance and excellent high-frequency characteristic : Cre=1.8pF (NPN), 2.3pF (PNP).
* Complementary pair with the 2SA1402/2SC3596.
* Adoption of FBET process. ( ) : 2SA1402 Specifications Absolute Maximum Ratings at Ta = 25˚C

A1402 Applications

* Applications
* Ultrahigh-definition CRT display.
* Video output.
* Color TV chroma output.
