A1405 - 2SA1405

A1405 Description

Ordering number:ENN1764B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1405/2SC3599 Ultrahigh-Definition CRT Display Video Output Applications App.

A1405 Features

* High fT : fT typ=500MHz.
* High breakdown voltage : VCEO≥120V.
* Small reverse transfer capacitance and excellent high-frequnecy characteristic : Cre=2.5pF (NPN), 3.8pF (PNP).
* Complementary pair with the 2SA1405/2SC3599.
* Adoption of FBET process. ( ) : 2SA1405 Specification

A1405 Applications

* Applications
* Ultrahigh-definition CRT display.
* Video output.
* Color TV chroma output.

📥 Download Datasheet

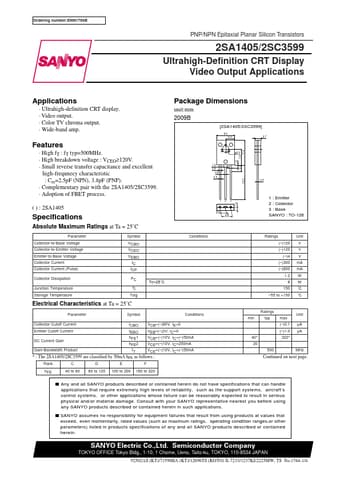

Preview of A1405 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1405
Manufacturer
Sanyo
File Size
43.12 KB
Datasheet
A1405-Sanyo.pdf
Description
2SA1405
