A1540

2SA1540

A1540 Features

* High gain-bandwidth product : fT=300MHz.

* High breakdown voltage : VCEO=200Vmin.

* Small reverse transfer capacitance and excellent high frequency characteristics : Cre=1.5pF/NPN, 1.8pF/ PNP.

* Complementary PNP and NPN types.

* Adoption of FBET process.

* Micaless type :

A1540 Datasheet (120.18 KB)

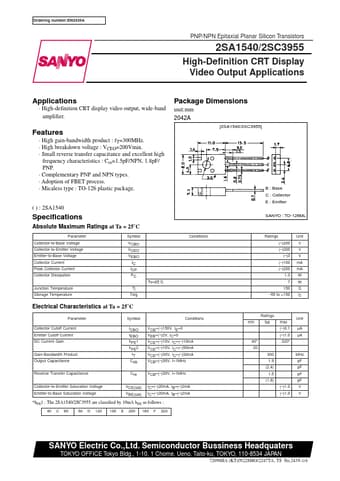

Preview of A1540 PDF

Datasheet Details

Part number:

A1540

Manufacturer:

Sanyo

File Size:

120.18 KB

Description:

2sa1540.
Ordering number:EN2439A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1540/2SC3955 High-Definition CRT Display Video Output Applications Applicati.
