C3986 - 2SC3986

Key Features

  • High DC current gain.
  • Large current capacity and wide ASO.
  • On-chip Zener diode of 60±10V between collector and base.
  • Uniformity in collector-to-base breakdown voltage due to the adoption of an accurate impurity diffusion process.
  • High inductive load handling capability.
  • Micaless package facilitating mounting. Specifications [2SC3986] 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C398 SILICON CONTROLLED RECTIFIER National Electronics
C3980 Silicon NPN Transistor Panasonic
C3987 2SC3987 Sanyo Semicon Device
C398C UPC398 NEC
C3902 2SC3902 Sanyo Semicon Device

Other Datasheets by SANYO (now Panasonic)

Part Number Description
C3988 2SC3988
C3989 2SC3989
C3912 2SC3912
C3913 2SC3913
C3914 2SC3914

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

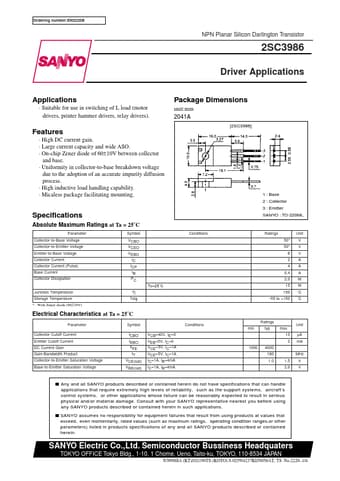

Ordering number:EN2220B NPN Planar Silicon Darlington Transistor 2SC3986 Driver Applications Applications · Suitable for use in switching of L load (motor drivers, printer hammer drivers, relay drivers). Package Dimensions unit:mm 2041A Features · High DC current gain. · Large current capacity and wide ASO. · On-chip Zener diode of 60±10V between collector and base. · Uniformity in collector-to-base breakdown voltage due to the adoption of an accurate impurity diffusion process. · High inductive load handling capability. · Micaless package facilitating mounting.
