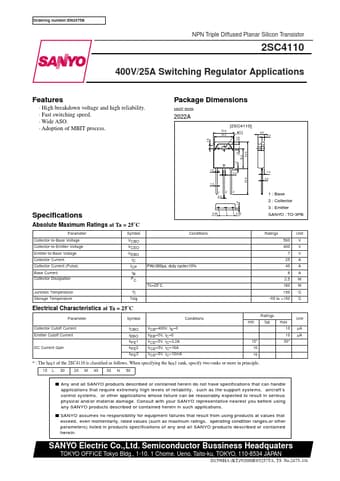

C4110 is 2SC4110 manufactured by SANYO.
Features
- High breakdown voltage and high reliability.
- Fast switching speed.
- Wide ASO.
- Adoption of MBIT process.
Package Dimensions unit:mm
2022A
[2SC4110]
15.6 3.2 14.0
4.8 2.0
1.3 1.2 3.5 15.0 20.0
1.6 2.0
1.4 0.6
Specifications
123 0.6
5.45 5.45
1 : Base 2 : Collector 3 : Emitter SANYO : TO-3PB
Absolute Maximum Ratings at Ta = 25˚C
Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation
Symbol
VCBO VCEO VEBO
IC ICP IB PC
Junction Temperature Storage Temperature
Tj Tstg
Conditions
PW≤300µs, duty cycle≤10% Tc=25˚C
Ratings 500 400 7 25 40 8 2.5 160 150
- 55 to +150
Unit V V V A A A W W ˚C ˚C
Electrical Characteristics at Ta = 25˚C
Parameter
Symbol
Conditions
Ratings min typ
Collector Cutoff Current Emitter Cutoff Current
DC Current...
