Part number: C5502
Manufacturer: Sanyo
File Size: 46.45KB
Download: 📄 Datasheet

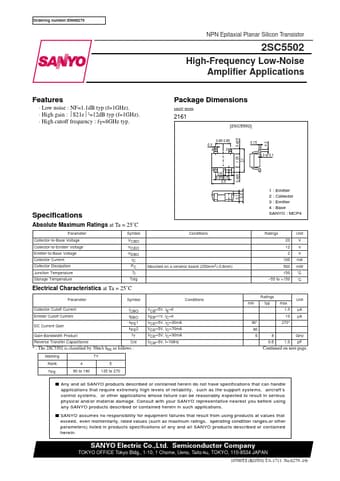

Description: 2SC5502
* Low noise : NF=1.1dB typ (f=1GHz).
* High gain : S21e2=12dB typ (f=1GHz).
* High cutoff frequency : fT=8GHz typ.
Package Dimensions
unit:mm 2161
[2SC5502.
Features
* Low noise : NF=1.1dB typ (f=1GHz).
* High gain : S21e2=12dB typ (f=1GHz).
* High cutoff freque.
Image gallery
