LA4500 Datasheet - Sanyo

5.3W 2-Channel AF Power Amplifier

LA4500 Features

* Low idling current (20mA/2 channels) enabling prolonged battery life.

* Less dependence of idling current on VCC.

* High power (5.3W typ. ×2).

* High ripple rejection (60dB at steady state). Since filters are arranged in 3 stages (including 1 stage inside the IC) to

LA4500 General Description

of External Parts C1 (C1) Feedback capacitors Related to low roll-off frequency fL for *3dB (100µF, fL=60Hz). A capacitance value of 47µF to 100µF is recommended. Increasing the capacitance value makes the starting time (ts) later. Decreasing the capacitance value makes the starting time (ts.

LA4500 Datasheet (629.97 KB)

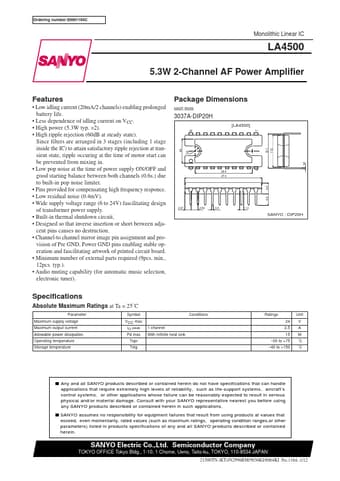

LA4500 Datasheet Preview — Preview of LA4500 PDF

Datasheet Details

Part number:

LA4500

Manufacturer:

Sanyo

File Size:

629.97 KB

Description:

5.3w 2-channel af power amplifier.
