LA4600 Datasheet - Sanyo

Audio Power Amplifier

LA4600 Features

* o use. Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. SANYO believes information herein is accurate and reliable, but no gu

LA4600 General Description

1. Standby switching function (7) Power is switched ON and OFF by controlling the High and Low states at pin 7, respectively (standby). To switch power ON, apply 1.5V or more, or 800 µA to pin 7. . Current supplied to pin 7 =. Applied voltage + VCC To bias circuit Applied voltage * VBE (a.

LA4600 Datasheet (66.47 KB)

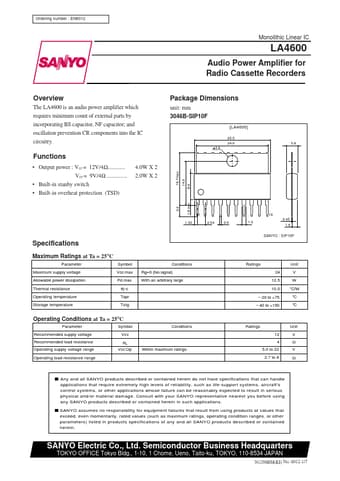

LA4600 Datasheet Preview — Preview of LA4600 PDF

Datasheet Details

Part number:

LA4600

Manufacturer:

Sanyo

File Size:

66.47 KB

Description:

Audio power amplifier.
Ordering number : EN6012 LA4600 Monolithic Linear IC LA4600 . Audio Power Amplifier for Radio Cassette Recorders Package Dimensions unit: mm 3046B-.
