LA5612 - Multifunctional Voltage Regulator for TVs and VCRs with BS Tuner

Product Overview

Sanyo

Part number	LA5612
Manufacturer	Sanyo
File Size	59.33 KB
Description	Multifunctional Voltage Regulator for TVs and VCRs with BS Tuner
Datasheet	LA5612 Datasheet

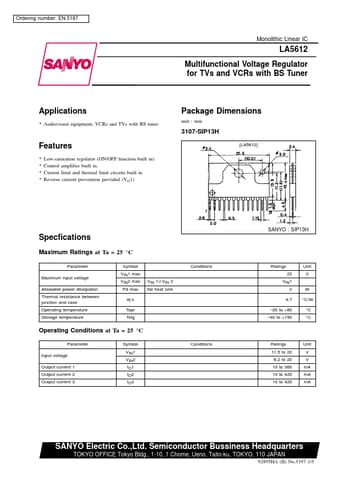

Additional preview pages of the LA5612 datasheet.

3107-SIP13H [LA5612] . Low-saturation regulator (ON/OFF function built in) . Control amplifier built in. . Current limit and thermal limit circuits built in . Reverse current prevention provided (V 1) O SANYO : SIP13H Specfications Maximum Ratings at Ta = 25 °C Parameter Maximum input voltage Allowable power dissipation Thermal resistance between junction and case Operating temperature Storage temperature Symbol VIN1 max VIN2 max Pd max θj-c Topr Tstg VIN 1^VIN 2 No heat sink Conditions Rati.
