LA5616 Datasheet - Sanyo

LA5616 Microprocessor-Controlled Audio Power Supply

Ordering number : EN5286 Monolithic Linear IC LA5616 Microprocessor-Controlled Audio Power Supply Overview The LA5616 is appropriate for use in power supplies for microprocessor-controlled CD players, tuners, receivers, and similar audio equipment. Package Dimensions unit: mm 3018A-SIP10F [LA5616] Functions Low-saturation 5-V, 400-mA power supply 7.0-V, 1.0-A power supply Output reset generation function The 5.0-V system can be controlled (on/off) fro.

LA5616 Features

* The reset output delay time can be set with an external capacitor.

* Sharp-cutoff current limiter circuit and thermal protection circuit

* Active pull-up element incorporated in reset output circuit for improved noise suppression. SANYO: SIP10F Specifications Absolute Max

LA5616 Datasheet (92.75 KB)

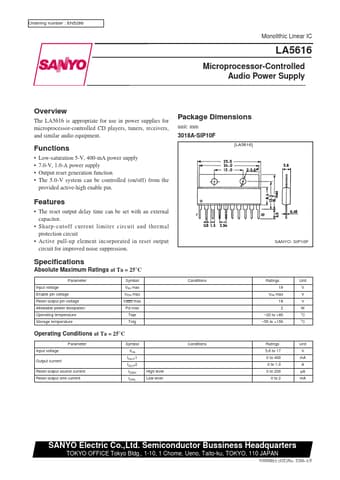

Preview of LA5616 PDF
LA5616 Datasheet Preview Page 2 LA5616 Datasheet Preview Page 3

Datasheet Details

Part number:

LA5616

Manufacturer:

Sanyo

File Size:

92.75 KB

Description:

Microprocessor-controlled audio power supply.
