LA70020

Recording/Playback Amplifier

LA70020 Datasheet (173.29 KB)

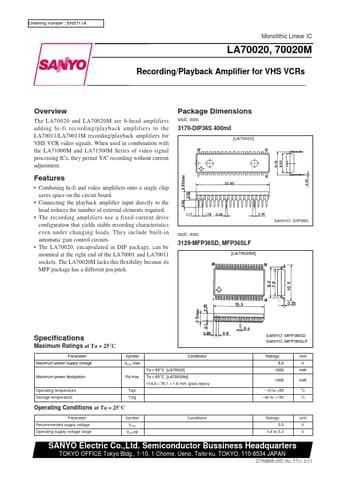

Preview of LA70020 PDF Datasheet

Datasheet Details

Part number:

LA70020

Manufacturer:

Sanyo

File Size:

173.29 KB

Description:

Recording/playback amplifier

LA70020 Features

* Combining hi-fi and video amplifiers onto a single chip saves space on the circuit board.

* Connecting the playback amplifier input directly to the head reduces the number of external elements required.

* The recording amplifiers use a fixed-current drive configuration that

LA70020 General Description

Hz and VIN = 90 mVp-p. Output level divided by HVOR for f = 4 MHz and VIN = 180 mVp-p. 0.4-MHz component for T3A VIN = 90 mVp-p, f = 1.3 MHz + VIN = 270 mVp-p, f = 1.7 MHz. 0.9-MHz component for T3A VIN = 90 mVp-p, f = 1.3 MHz + VIN = 270 mVp-p, f = 1.7 MHz. MUTE OF.
