LA70020M Recording/Playback Amplifier

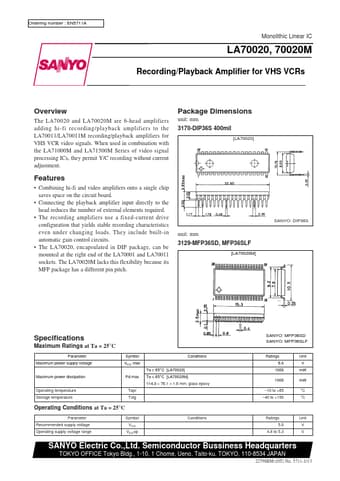

Ordering number : EN5711A Monolithic Linear IC LA70020, 70020M Recording/Playback Amplifier for VHS VCRs Overview The LA70020 and LA70020M are 6-head amplifiers adding hi-fi recording/playback amplifiers to the LA70011/LA70011M recording/playback amplifiers for VHS VCR video signals. When used in combination with the LA71000M and LA71500M Series of video signal processing ICs, they permit Y/C recording without current adjustment. Package Dimensions unit: mm 3170-DIP36S 400mil [LA70020] Feat.

LA70020M Features

* Combining hi-fi and video amplifiers onto a single chip saves space on the circuit board.

* Connecting the playback amplifier input directly to the head reduces the number of external elements required.

* The recording amplifiers use a fixed-current drive configuration that
