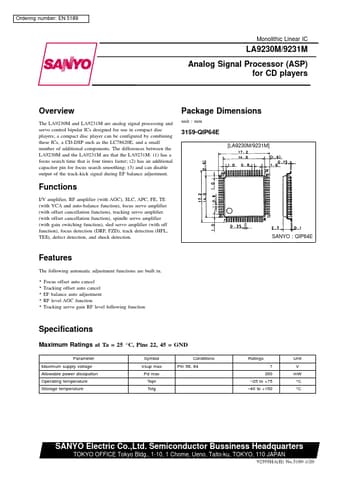

Ordering number: EN 5189 Monolithic Linear IC LA9230M/9231M Analog Signal Processor (ASP) for CD players Overview The LA9230M and LA9231M are analog signal processing and servo control bipolar ICs designed for use in compact disc players; a compact disc player can be configured by combining these ICs, a CD-DSP such as the LC78620E, and a small number of additional components. The differences between the LA9230M and the LA9231M are that the LA9231M: (1) has a focus search time that is four tim.

LA9231 Features

* The following automatic adjustment functions are built in. . Focus offset auto cancel . Tracking offset auto cancel . EF balance auto adjustment . RF level AGC function . Tracking servo gain RF level following function Specifications Maximum Ratings at Ta = 25 °C, Pins 22, 45 = GND Parameter Maximu
