LA9520V - AV Coupler Receiver

Sanyo

📥 Download Datasheet

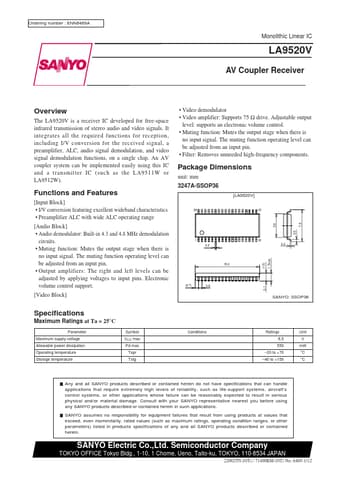

LA9520V Datasheet Preview — Preview of LA9520V PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LA9520V
Manufacturer	Sanyo
File Size	144.41 KB
Description	AV Coupler Receiver
Datasheet	LA9520V_SanyoSemiconDevice.pdf

LA9520V Product details

Features

[Input Block].
I/V conversion featuring excellent wideband characteristics.
Preamplifier ALC with wide ALC operating range [Audio Block].
Audio demodulator: Built-in 4.3 and 4.8 MHz demodulation circuits.
Muting function: Mutes the output stage when there is no input signal. The muting function operating level can be adjusted from an input pin.
Output amplifiers: The right and left levels can be adjusted by applying voltages to input pins. Electroni.
