LC3564BS, 64K (8192-word 8-bit) SRAM

Ordering number : EN5804A CMOS IC LC3564B, BS, BM, BT-70/10 64K (8192-word × 8-bit) SRAM with OE, CE1, and CE2 Control Pins Overview The LC3564B, L.

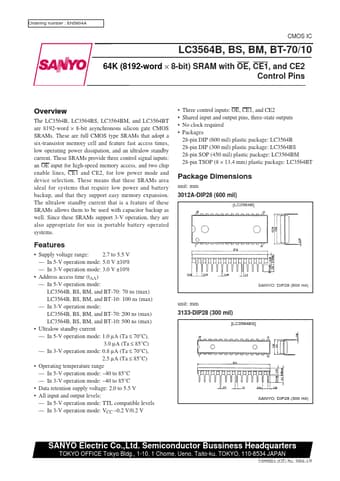

datasheet Preview Page 1 from Datasheet4u.com

LC3564BS_SanyoSemiconDevice.pdf

LC3564BS Datasheet Preview — Preview of LC3564BS PDF

Datasheet Details

Part number:

LC3564BS

Manufacturer:

Sanyo

File Size:

137.66 KB

Description:

64K (8192-word 8-bit) SRAM

Features

* Supply voltage range: 2.7 to 5.5 V
* In 5-V operation mode: 5.0 V ±10%
* In 3-V operation mode: 3.0 V ±10%
* Address access time (tAA)
* In 5-V operation mode: LC3564B, BS, BM, and BT-70: 70 ns (max) LC3564B, BS, BM, and BT-10: 100 ns (max)
* In 3-V

Applications

* must not apply reverse phase signals to the DOUT pins when those pins are in the output state. 3. The time tWP is the period when CE1 and WE are low and CE2 is high, and is defined as the time from the fall of WE until either CE1 or WE rises, or CE2 falls, whichever occurs first. 4. The times tCW1 a
