LC4100C - LCD Dot Matrix Common Driver

SANYO (now Panasonic)

Datasheet Details

Part number	LC4100C
Manufacturer	SANYO (now Panasonic)
File Size	87.86 KB
Description	LCD Dot Matrix Common Driver
Datasheet	LC4100C Datasheet

Overview

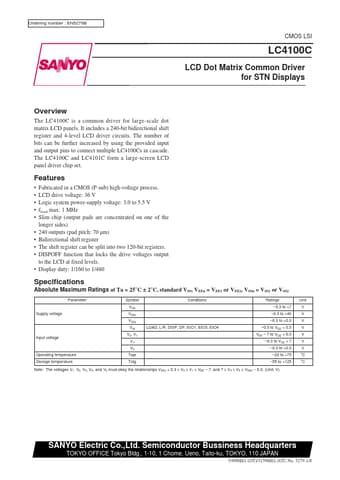

Ordering number : EN5279B CMOS LSI LC4100C LCD Dot Matrix Common Driver for STN Displays Overview The LC4100C is a common driver for large-scale dot matrix LCD panels.

It includes a 240-bit bidirectional shift register and 4-level LCD driver circuits.

The number of bits can be further increased by using the provided input and output pins to connect multiple LC4100Cs in cascade.

Key Features

Fabricated in a CMOS (P-sub) high-voltage process. LCD drive voltage: 36 V Logic system power-supply voltage: 3.0 to 5.5 V fload max: 1 MHz Slim chip (output pads are concentrated on one of the longer sides) 240 outputs (pad pitch: 70 µm) Bidirectional shift register The shift register can be split into two 120-bit registers.
